NOMO Stand Alone Solar Powered intelligent Street Light Pole, which can meet the widely demand of the high lumen and longer backup day. Comparing with the circle solar pole light, Helios series Stand Alone Solar Powered intelligent Street Light Pole is triangle, this unique shape makes the panels on the pole catch enough power or energy.
So far, this series has two kinds of lamp for option, LED street light and HYPERION series all in one solar street, you can choose any lamps for your project.
♦ FEATURES:

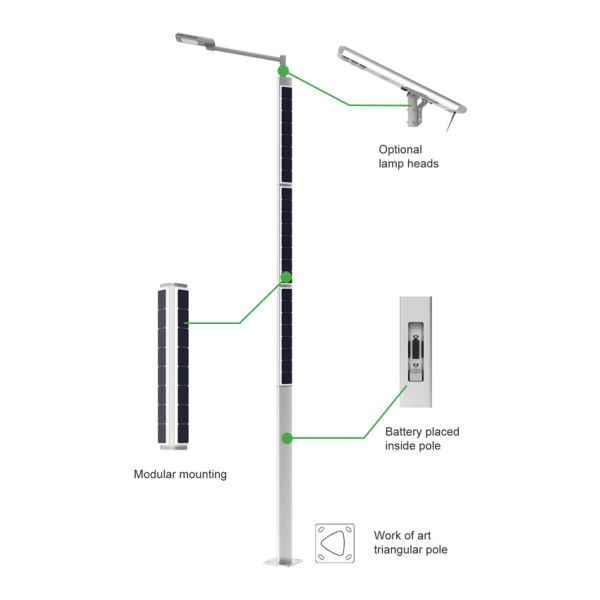

1.Modular installation: it’s based on modular design concept for easy installation, only cost few minutes to install the light.
2.Triangle design: comparing with the cylinder module in the market, triangle design is unique.
3. No bill for electricity anymore. Eco-friendly. 100% pure energy from sun.
4.Up to 12 hours solar light head can work with 100% power continuously, for energy saving modes, autonomy can reach to more than 3days minimum without charging.
5.Using latest LiFePO4 battery with long lifetime deep cycles, working well in low and high temperature at -15 to +70. Free maintenance for years without extra cost.
♦ TECHNICAL PARAMETER:
Model: H6 with LED Lamp
Light source:
Luminous flux(max): 15000lm
Pole height: 6m
LUMINAIRE :
Color temperature: 2700-6500K (Customized)
Color rendering index (CRI): >85
LED life time (LM80): >100000 hours
Dimensions (L x W x H): 905x350x80mm
Material: Aluminium Case
SOLAR PANEL
PV Model: 6 pcs of Monocrystalline silicon
Pmax: 240watt
Pole solar panel size: 1285 x 176mm
BATTERY
LiFePO4 capacity: 1250WH
LIGHT POLE, BRACKET
Wind class: 35m/s
Pole size: 221x221x207mm
Pole length: 10m
Material: Aluminium
Surface treatment: Anodic oxidation
♦ LIGHT DISTRIBUTION CURVE
♦ FALSE COLOR RENDERING
♦ PROJECT PICTURE
Unique 15000LM Stand Alone Solar Powered intelligent Street Light Pole
♦ FAQ:
Q: What type of solar module is in your solutions? Are they resistant to vandalism?
A: We use high-efficiency mono-crystalline solar modules used for the lights.
Q: Can I order a trial unit?
A: We encourage you to inquire about an installation in your community. We believe the first step is to witness our technology in the field.
Q: How to proceed an order for the light?
A: Firstly, let us know your requirements or appliance.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and arrange the payment.
Fourthly, we will arrange the production after received the payment
Q: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q: How to deal with the faulty?
A: Our products are produced in strict quality control system. If the faulty happened during the guarantee period, we will send new parts with new order for small quantity. For defective batch products, we will arrange repair team to check the problem and discuss the solution including re-call according to the real situation.
